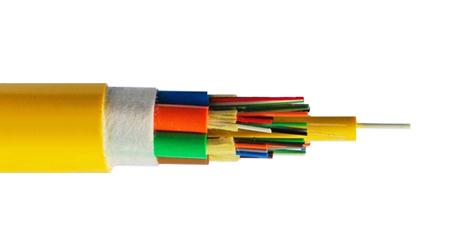

Multi Purpose Break-out Cable
Classification：Indoor Optical Cable
Time：2017/9/20 16:16:12
View：1181

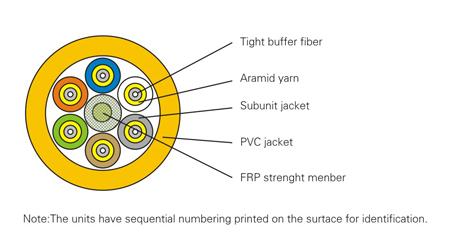

•Description
|
02~12
fiber, Stranded structure, FRP strength member, 1-fiber subunit (Φ900μm Tight
buffer, Aramid yarn), PVC Jacket.
|
|
·Standards
|
|
· Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and
meet the requirements of UL approval for OFNR.
|
|
·Cable Code
|
|
|
BOC-02
|
BOC-04
|
BOC-06
|
BOC-08
|
BOC-10
|
BOC-12
|
|
Cable Diameter (mm)
|
7.2±0.5
|
7.2±0.5
|
8.3±0.5
|
9.4±0.5
|
10.7±0.5
|
12.2±0.5
|
|
Cable Weight (kg/km)
|
45
|
45.2
|
62.5
|
85.9
|
109
|
140
|
|
TBF Diameter
|
900±50μm
|
|
|
·Mechanical Characteristics
|
|
Tensile Strength
|
Long term
|
200N
|
|
Short term
|
660N
|
|
Crush Resistance
|
Long term
|
300N/100mm
|
|
Short term
|
1000N/100mm
|
|
Bending Radius
|
Dynamic
|
20×D （ Cable
Diameter）
|
|
Static
|
10×D （ Cable
Diameter）
|
|
|
·Optical Characteristics
|
|
|
50/125μm
|
62.5/125μm
|
G.652
|
G.655
|
|
Attenuation(+20℃)
|
@850nm
|
≤3.5dB/km
|
≤3.5dB/km
|
|
|
|
@1300nm
|
≤1.5dB/km
|
≤1.5dB/km
|
|
|
|
@1310nm
|
|
|
≤0.45dB/km
|
≤0.50dB/km
|
|
@1550nm
|
|
|
≤0.30dB/km
|
≤0.50dB/km
|
|
Bandwidth (Class A)
|
@850nm
|
≥500MHz·km
|
≥200MHz·km
|
|
|
|
@1300nm
|
≥1000MHz·km
|
≥600MHz·km
|
|
|
|
Numerical Aperture
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
|
Cable Cut-off Wavelength λcc
|
|
|
≤1260nm
|
≤1480nm
|
|
Attenuation at temperature cycling
Δα(-20℃~+85℃)
|
@1300nm
|
≤0.50dB/km
|
≤0.50dB/km
|
|
|
|
@1550nm
|
|
|
≤0.20dB/km
|
≤0.20dB/km
|
|
|
·Environmental Characteristics
|
|
Transport Temperature
|
-20℃~+60℃
|
|
Storage Temperature
|
-20℃~+60℃
|
|
Installation Temperature
|
-5℃~+50℃
|
|
Operating Temperature
|
-20℃~+60℃
|
|
