Indoor Optical Cable
Classification：Indoor Optical Cable
Time：2017/9/29 11:33:09
View：1176
|

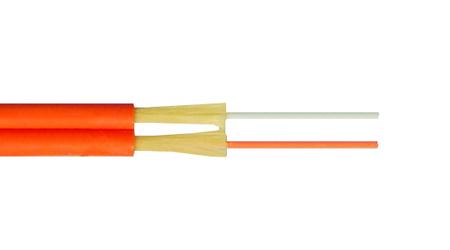

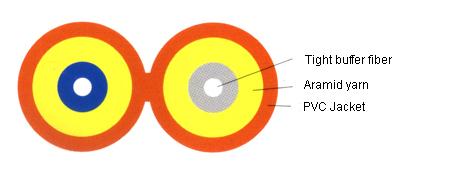

2 fiber, Figure 8 structure, Φ900μm or
Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.
|
|
·Standards
|
|
· Comply with Standard YD/T 1258.3-2003, ICEA-596, GR-409, IEC794, etc; and
meet the requirements of UL approval for OFNR and OFNP.
|
|
·Cable Code
|
|
|
ZCC-III
|
ZCC-II
|
ZCC-I
|
|
Cable Diameter (mm)
|
(6.0±0.4)×(2.8±0.2)
|
(4.2±0.4)×(2.0±0.2)
|
(3.4±0.4)×(1.6±0.2)
|
|
Cable Weight (kg/km)
|
15.6
|
10.5
|
7.3
|
|
TBF Diameter
|
900±50μm
|
900±50μm
|
600±50μm
|
|
|
·Mechanical
Characteristics
|
|
Tensile Strength
|
Long term
|
100N
|
100N
|
|
|
Short term
|
200N
|
200N
|
|
|
Crush Resistance
|
Long term
|
200N/100mm
|
100N/100mm
|
|
|
Short term
|
1000N/100mm
|
500N/100mm
|
|
|
Bending Radius
|
Dynamic
|
20×H （ Cable
Axis）
|
|
Static
|
10×H （ Cable
Axis）
|
|
|
·Optical Characteristics
|
|
|
50/125μm
|
62.5/125μm
|
G.652
|
G.655
|
|
Attenuation(+20℃)
|
@850nm
|
≤3.5dB/km
|
≤3.5dB/km
|
|
|
|
@1300nm
|
≤1.5dB/km
|
≤1.5dB/km
|
|
|
|
@1310nm
|
|
|
≤0.45dB/km
|
≤0.50dB/km
|
|
@1550nm
|
|
|
≤0.30dB/km
|
≤0.50dB/km
|
|
Bandwidth (Class A)
|
@850nm
|
≥500MHz·km
|
≥200MHz·km
|
|
|
|
@1300nm
|
≥1000MHz·km
|
≥600MHz·km
|
|
|
|
Numerical Aperture
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
|
Cable Cut-off Wavelength λcc
|
|
|
≤1260nm
|
≤1480nm
|
|
Attenuation at temperature cycling
Δα(-20℃~+85℃)
|
@1300nm
|
≤0.25dB/km
|
≤0.25dB/km
|
|
|
|
@1550nm
|
|
|
≤0.10dB/km
|
≤0.15dB/km
|
|
|
·Environmental
Characteristics
|
|
Transport Temperature
|
-20℃~+60℃
|
|
Storage Temperature
|
-20℃~+60℃
|
|
Installation Temperature
|
-5℃~+50℃
|
|
Operating Temperature
|
-20℃~+60℃
|
|
