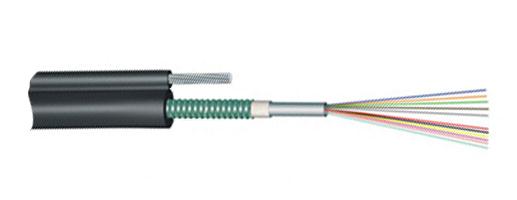

Figure 8 Cable£¨GYXTC8S£©
Classification£ºOutdoor Optical Cable
Time£º2017/9/29 11:42:26
View£º858
|
¡¤Description

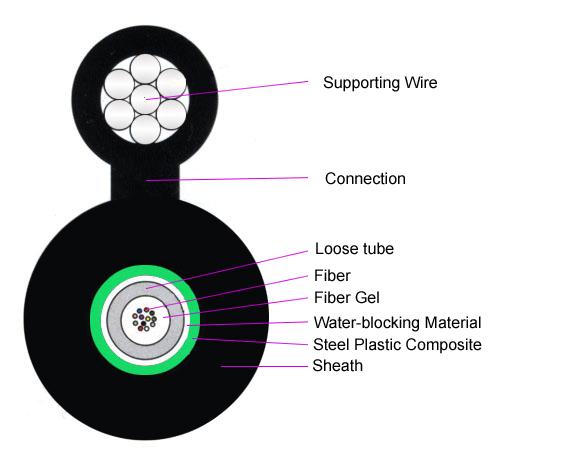

The fibers, 250¦Ìm,are positioned in a
loose tube made of a high modulus plastic, the tubes are filled with a
water-resistant filling compound. The two sides PSP are longitudinally
applied over the outer loose tube. Steel wires and loose tubes filled with water
proof compound to ensure compact and longitudinally water blocking ,this part
of cable accompanied with the stranded wires as the supporting part are
completed with a polyethylene(PE) sheath to be figure 8 structure.
|
|
¡¤Characteristics
¡¤ High tensile strength of stranded wires meet the requirement of
self-supporting and reduce the
installation cost
¡¤ Good mechanical and temperature
performance
¡¤ High strength loose tube that is
hydrolysis resistant
¡¤ Special tube filling compound
ensure a critical protection of fiber
¡¤ PSP enhancing moisture-proof
¡¤ Small diameter, light weight and
friendly installation
¡¤ Long delivery length and low
price.
¡¤Standards
GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
¡¤Optical Characteristics
|
|
|
G.652
|
G.655
|
50/125¦Ìm
|
62.5/125¦Ìm
|
|
Attenuation
(+20¡æ)
|
@850nm
|
|
|
¡Ü3.0 dB/km
|
¡Ü3.0 dB/km
|
|
@1300nm
|
|
|
¡Ü1.0 dB/km
|
¡Ü1.0 dB/km
|
|
@1310nm
|
¡Ü0.36 dB/km
|
¡Ü0.40 dB/km
|
|
|
|
@1550nm
|
¡Ü0.22 dB/km
|
¡Ü0.23dB/km
|
|
|
|
Bandwidth (Class A)
|
@850nm
|
|
|
¡Ý500 MHz¡¤km
|
¡Ý200 MHz¡¤km
|
|
@1300nm
|
|
|
¡Ý1000 MHz¡¤km
|
¡Ý600 MHz¡¤km
|
|
Numerical Aperture
|
|
|
0.200¡À0.015NA
|
0.275¡À0.015NA
|
|
Cable Cut-off Wavelength ¦Ëcc
|
¡Ü1260nm
|
¡Ü1480nm
|
|
|
|
|
¡¤Technical Parameters
|
|
Cable Type
|
Fiber Count
|
Cable Diameter
mm
|
Cable Weight kg/km
|
Supporting Wire Spec
|
Connection Diameter
|
Tensile Strength
Long/Short Term
N
|
Crush Resistance
Long/Short Term
N/100mm
|
Bending Radius
Static
/Dynamic
mm
|
|
GYXTC8S
|
2~12
|
7.65¡Á14.5
|
118
|
¦µ1.0mm*7
Stranded wires
|
Height¡ÁWidth
3.0¡Á2.5 mm
|
1000/2500
|
300/1000
|
80/160
|
|
GYXTC8S
|
14~24
|
8.2¡Á15.1
|
129
|
¦µ1.0mm*7
Stranded wires
|
Height¡ÁWidth
3.0¡Á2.5 mm
|
600/1500
|
300/1000
|
90/180
|
|
|
Storage/Operating Temperature : -40¡æ to +
60¡æ
|
8, 238); border-right: 0px solid rgb(238, 238, 238);">¦µ1.0mm*7
Stranded wiresHeight¡ÁWidth
3.0¡Á2.5 mm600/1500300/100090/180Storage/Operating Temperature : -40¡æ to + 60¡æ
